Linear Guide Systems are designed to move goods accurately and smoothly in a wide variety of applications. SDP/SI offers a number of options such as an industrial "V" Guide System, Mini-Rail® Linear Guide System, and Low Profile Linear Guide System.
Components are available in different styles, configurations and materials. Learn more about the Linear Guide Systems offered by accessing data sheets on the E-store or request your copy of our latest catalog.
Quality Bearings & Components offers bearings and bearing monitoring and maintenance tools.
QBC offers a comprehensive selection of bearings and linear motion products from major manufacturers.
In addition to stock components, we provide bearing & power transmission monitoring & maintenance equipment, plus value-added serives.
PRECISION HEAVY-DUTY LINEAR GUIDE SYSTEMS:
STANDARD LINEAR GUIDE BLOCKS
STARNDARD METRIC LINEAR GUIDE RAILS
"V" GROOVE GUIDE WHEELS
AVAILABLE IN:
AISI 52100 Chrome Steel
AISI 440C Stainless Steel
O.D.: .584 in. - 2.360 in.
Weight: .250 in. - .750 in.

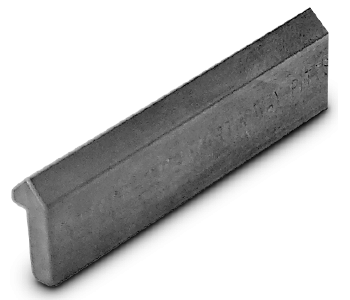

"V" GROOVE TRACK - UNDRILLED
AVAILABLE IN:
Carbon Steel, Hardened or Unhardened
Stainless Steel, Hardened or Unhardened
Single Edge
O.D.: .584 in. - 2.360 in.
Weight: .250 in. - .750 in.
Lengths up to 20 feet for hardened, 22 feet for unhardened, are available on special order. Lengths over 10 feet will require a cutting charge. The portion below indexing shoulder is left soft so it may be drilled for mounting. Track can be easily butt-jointed for stroke lengths exceeding maximum single-piece lengths of 20 feet plus. The overall length tolerance is ± 1/16".
"V" GROOVE TRACK - PREDRILLED
AVAILABLE IN:
Carbon Steel, Hardened or Unhardened
Stainless Steel, Hardened or Unhardened
Single Edge
O.D.: .584 in. - 2.360 in.
Weight: .250 in. - .750 in.
Lengths up to 20 feet for hardened, 22 feet for unhardened, are available on special order. Lengths over 10 feet will require a cutting charge. The portion below indexing shoulder is left soft so it may be drilled for mounting. Track can be easily butt-jointed for stroke lengths exceeding maximum single-piece lengths of 20 feet plus. The overall length tolerance is ± 1/16".
"V" GROOVE GUIDE WHEELS, INTEGRAL BUSHING
AVAILABLE IN:
52100 Chrome Steel
Nylon Retainer
Shielded Type
Bushing: Eccentric
O.D.: .30.73 in., 45.8 in., and 59.94 in.
"V" GROOVE GUIDE WHEELS, INTEGRAL STUDDED BUSHING
AVAILABLE IN:
52100 Chrome Steel
Nylon Retainer
Shielded Type
Bushing: Eccentric
O.D.: 14.83 mm, 19.58 mm, 30.73 mm, 45.8 mm, and 59.94 mm
GUIDE WHEEL JOURNALS, ECCENTRIC & CONCENTRIC
AVAILABLE IN:
Stainless Steel AISI 303
Bushing: Eccentric
O.D.: 14.83 mm, 19.58 mm, 30.73 mm, 45.8 mm, and 59.94 mm
O.D. tolerance: for size 0: +.0000, -.0005.
Concentrically mounted wheels should be configured to carry the majority of the load whenever possible.
ECCENTRIC & CONCENTRIC SUPPORT BUSHINGS
AVAILABLE IN:
303 Stainless Steel
Bushing: Eccentric / Concentric
Length: .550 in., .706 in., .990 in., & 1.177 in.
PRECISION LOW-LOAD PROFILE LINEAR GUIDE SYSTEM:
PRECISION ANTI-BACKLASH BALL NUTS:
AVAILABLE IN:
Pitch: 2.5 - 20
Length: 50 - 65
Ball screw assemblies are efficient in converting rotary motion to linear motion. A series of precision steel Ball Nuts are offered and 2 optional mounting brackets for flange mounting or base mounting. Ball nuts and brackets are compatible with 16 mm diameter ball screws. Ball nuts are anti-backlash.
PRECISION BALL SCREWS:
AVAILABLE IN:
Pitch: 2.5 - 20
Length: 452 mm - 1052 mm
Ball screw assemblies produce greater than 90% efficiency in converting rotary to linear motion and have long life expectancy. Precision Ball Screws are offered in a various pitches and lengths and are available with machined and non-machined ends. Lengths longer than 3 m are available on special request.
COMMERCIAL ACME LEAD SCREWS:
AVAILABLE IN:
Length: 1 ft - 6 ft
Scew Sizes: 1/4-20 - 1-10
We can perform secondary operations on this product.
Acme Lead Screws are made of durable, high-quality stainless steel. Unlike electroplating, the anti-corrosive properties of stainless steel are not subject to frictional wear, which makes these lead screws ideal for corrosive environments. Acme lead screws are an adaptable, cost-effective solution to many linear motion applications. Acme lead screw assemblies are also well suited for vertical motion applications. The large contact area between the screw and the nut result in high-load capacity and prevents back-driving.
Call us for secondary operations such as finishing the ends to fit a bearing or motor so that it works perfectly with your design.
COMMERCIAL ACME LEAD SCREW NUTS:
AVAILABLE IN:
Length: 0.5 in - 3.0 in
Lead: 0.05 in - 1.20 in
Lead Screw Nuts come in a variety of sizes and a number of starts. Bronze nuts have the highest load capacity and require lubrication. Acetal nuts are very low friction and are highly efficient. Turcite® (Acetal, PTFE & Silicone filled) offers exceptionally long operating life due to its excellent wear characteristics. Anti-backlash nuts are also available.
